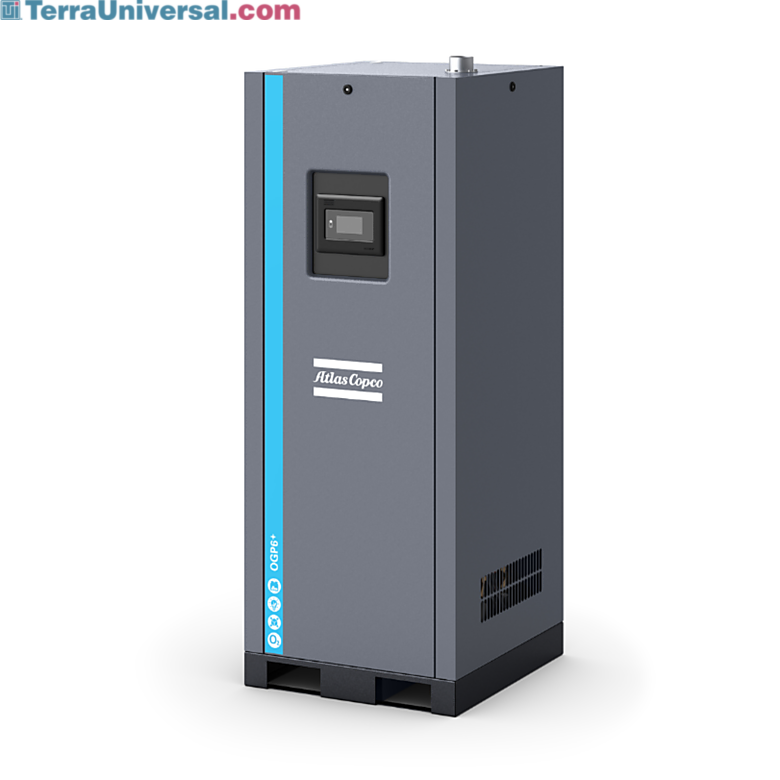

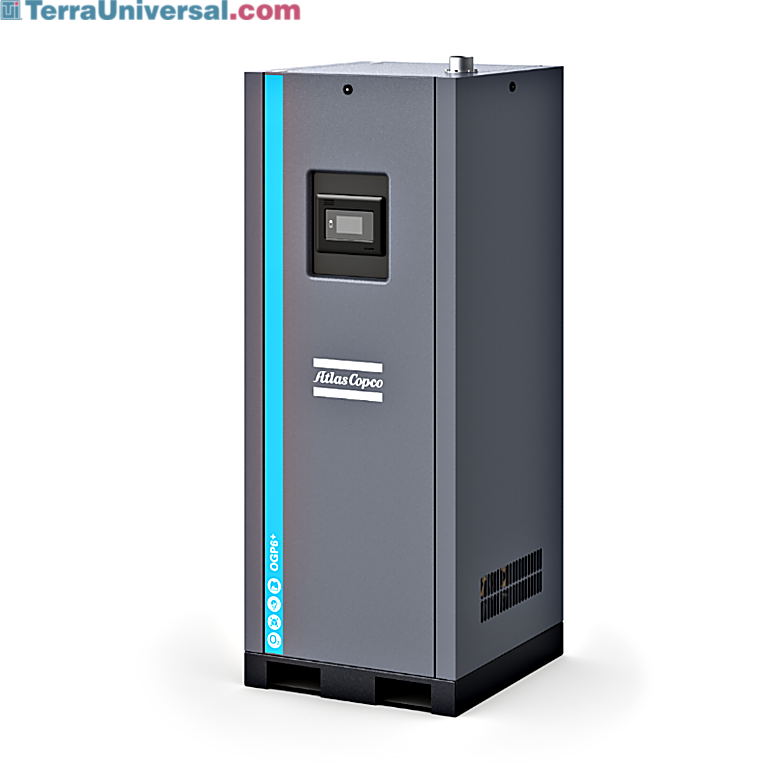

Plug-and-Play OGP+ Onsite PSA Oxygen Generators by Atlas Copco deliver up to 70% energy savings and requires 30% less air feed | 1989-PP-03 displayed
Nitrogen and Hydrogen Generators,Nitrogen and Hydrogen Generators,Nitrogen and Hydrogen Generators,Gas Generators
Product Group:
1989-PP-04
1989-PP-04 83488

On-Site PSA Oxygen Generators by Atlas Copco

  • Cost-efficient, on-site PSA Oxygen Generators provide up to 70% in energy savings and deliver 24/7 continuous supply of oxygen at desired purity level
  • Plug-and-play models feature a touch controller for easy purity selection
  • Easily integrates with existing compressed air installation and greatly reduces cost
  • Provides O2 purity at 90%, 93% and 95%; requires 30% less feed air
  • Included: standard O2 sensor, digital flow meter, pressure regulator and PDp+O2 filters
Read more
Warranty: 15-Month Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Type

Sort Order:
Model

Sort Order:

 Terra Part # Price Ships in
PSA OGP 3+ 1989-38 83490 Request Quote 15-25 Days 2
PSA OGP 6+ 1989-39 83532 Request Quote 15-25 Days 3
PSA OGP 9+ 1989-40 83533 Request Quote 15-25 Days 4
PSA OGP 12+ 1989-41 83534 Request Quote 15-25 Days 5
PSA OGP 15+ 1989-42 83535 Request Quote 15-25 Days 6
PSA OGP 18+ 1989-43 83537 Request Quote 15-25 Days 7
PSA OGP 24+ 1989-44 83538 Request Quote 15-25 Days 8
PSA OGP 30+ 1989-45 83539 Request Quote 15-25 Days 9
Type
Model
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Cost-efficient, on-site PSA Oxygen Generators provide up to 70% in energy savings and deliver 24/7 continuous supply of oxygen at desired purity level
  • Plug-and-play models feature a touch controller for easy purity selection
  • Easily integrates with existing compressed air installation and greatly reduces cost
  • Provides O2 purity at 90%, 93% and 95%; requires 30% less feed air
  • •  Included: standard O2 sensor, digital flow meter, pressure regulator and PDp+O2 filters
  • Applications: waste water treatment, ozone production, health care, and the glass industry
  • Features of Atlas Copco OGP+ 3-30 Pressure Swing Adsorption (PSA) Nitrogen Generators:
  • PSA technology isolates oxygen molecules from other molecules in compressed air to produce high purity oxygen at the generator outlet
  • Plug-and-play enables purity selection at the touch of a button, and fully automates at start-up sequence, at initial installation or after a long shutdown
  • Variable Cycle Saver (VCS): eliminates energy waste during low demand and in colder temperatures for up to 70% in energy savings
  • Elektronikon touch controller with large HD touchscreen: plug-and-play installation, easy gas purity selection, alarm, alerts, feed air monitoring to optimize compressor performance, interception, and connectivity options
  • Efficient feed air and Zeolite Molecular Sieve (ZMS) utilization delivers double-digit reductions in total cost per unit of oxygen
  • Safeguards integrity of adsorbent media via continuous monitoring and automatic adjustment of the feed air
  • Feed air monitoring and interception protect generator integrity by checking every unit of incoming air and blocks the inlet if the adjustable threshold is not reached and reopens the inlet once quality is restored
  • Gas purity monitoring and interception zirconia sensor (with a precise and long lifetime) checks purity of every unit of produced O2 and if the adjustable threshold is not reached and generator restores O2 level before delivery
  • Small footprint and approval-friendly aluminum extrusions
  • Maximum operational savings with easy oxygen purity selection
  • Components in contact with oxygen cleaned for O2 service
  • Can be combined with a cylinder or bulk gas supply system
  • Protects applications with 24/7 monitoring and adjustment of O2 purity
  • Benefits of Atlas Copco On-Site Oxygen Generators:
  • Provides independent supply of oxygen
  • Enables consumers to produce oxygen purity at their desired level
  • Lowers operational cost by eliminating rental charges, transport expenses and bulk user evaporation losses
  • Easily integrates within existing compressed air installations
  • Requires 30% less feed air compared to a traditional gas generator
  • Guarantees 24/7 oxygen source
  • Eliminates safety hazards when handling high pressure cylinders
  • Only pay for the purity level set
  • Reduces downtime, labor, injuries, and eliminates the need to store additional tanks
  • On-site oxygen generation enables continuity and reliability of O2 supply
  • FOD: Free Oxygen Delivery Reference conditions:
  • Compressed air effective inlet pressure: 6 bar(g)/87 psi(g)
  • Ambient air temperature: 20°C/68°F
  • Inlet air quality [1:4:1] according to ISO 8573-1:2010
  • Outlet oxygen quality [1:2:1] according to ISO 8573-1:2010
  • Optional Accessories:
  • Low ambient temperature settings (-10ºC/14ºF)
  • Oxygen quality (PDP) monitoring
  • Room oxygen alarm (wall mount)
Show more

Show more
Features & Benefits

Features and Benefits

Up to 70% Energy Savings

Variable Cycle Saver (VCS) feature of OGP+ models eliminates energy waste during lower demand productions and in cold weather for up to 70% energy savings

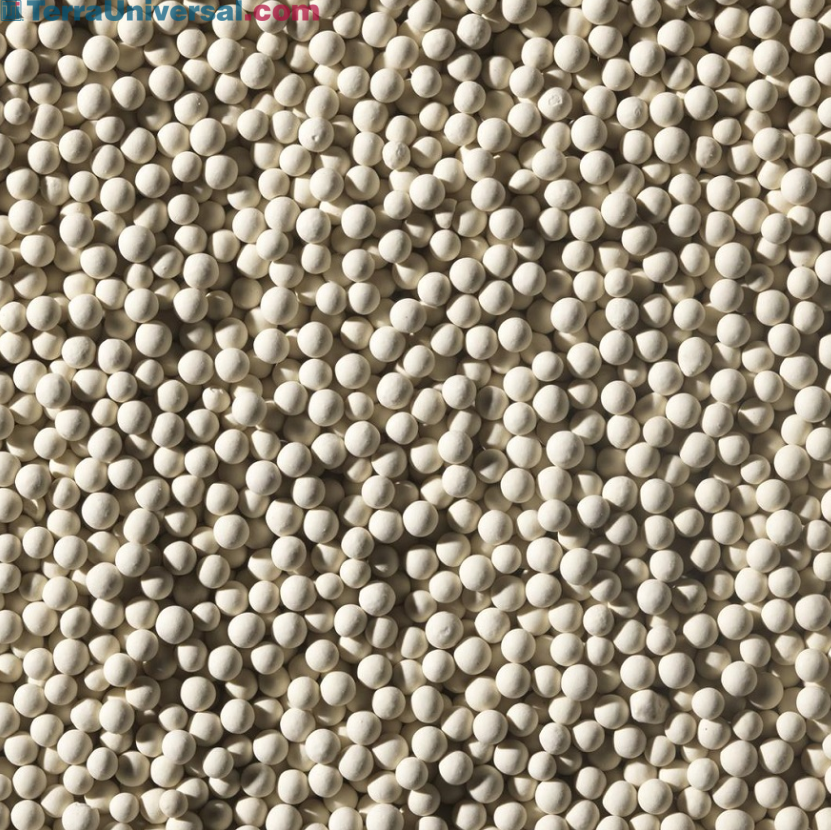

Double-Digit Reductions

Zeolite Molecular Sieve Adsorbent feature offers energy savings and double-digit reductions in the total cost per unit of oxygen

Plug and Play

Designed with complete scope and intelligent controls, OGP+PSA Oxygen Generators are fully-automated at initial installation or after a long shutdown

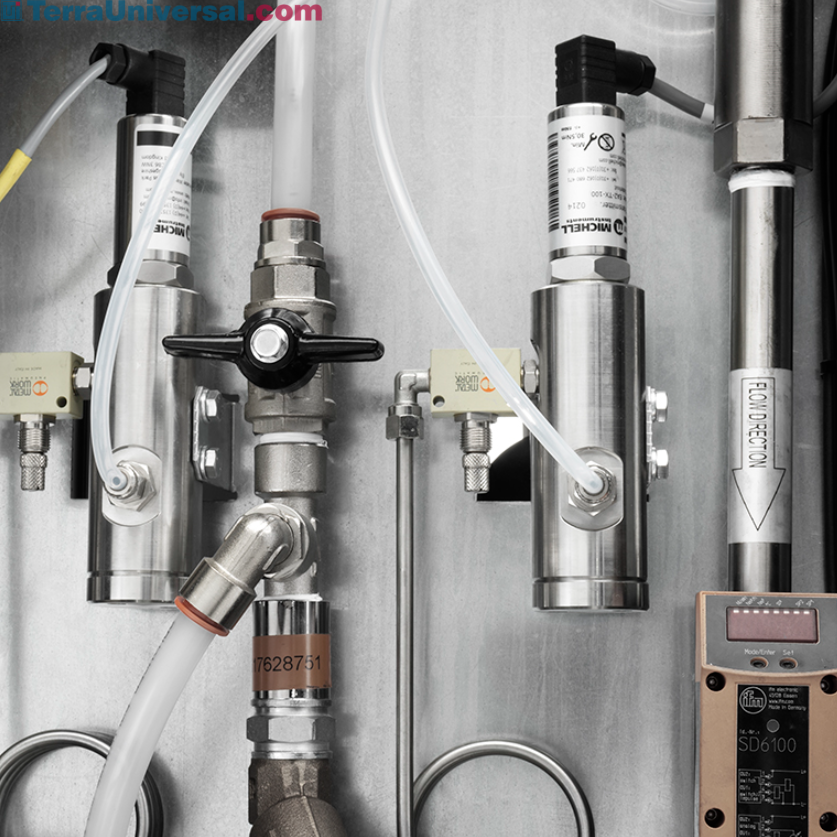

Options

Models are available with optional low ambient settings of -10ºC/14ºF, oxygen quality monitoring and a room oxygen alarm

Gas Purity Monitoring Interception

Precise zirconia sensor checks the purity of each unit of produced O2 and the generator restores the O2 level prior to delivery if the adjustable threshold is not reached

Feed Air Monitoring Interception

Generator integrity is protected when every unit of incoming air is checked on quality; in the event the required level is not reached, the inlet is blocked and only reopens upon restoration of quality

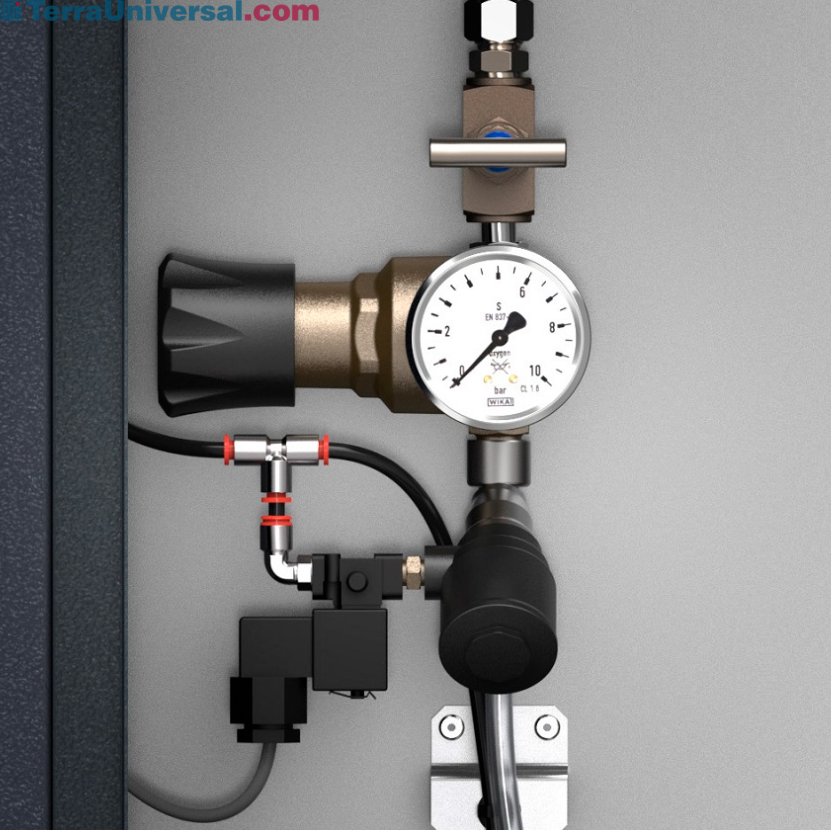

Cleaned Components

Components in contact with oxygen is cleaned for O2 service to ensure purity

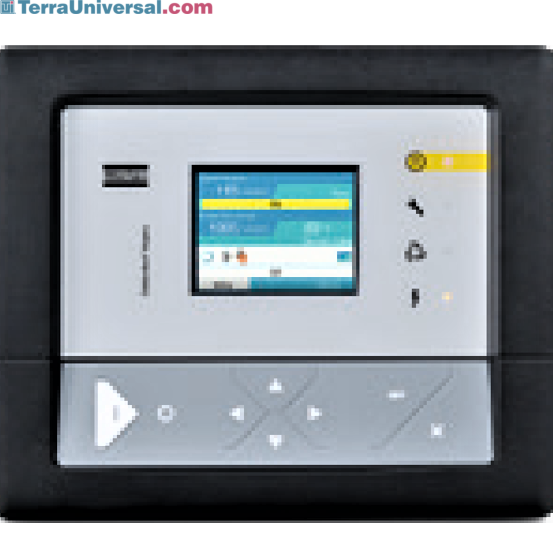

Advanced Control and Monitor

On-site Oxygen and Nitrogen Generators with an advanced control monitor optimizes performance and efficiency, and connects to the optional SMARTLINK Data Monitoring Program
