6924-71
Terra Part # 6924-71
$2,323
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Accessories related to Terra Part # 6924-71
62308

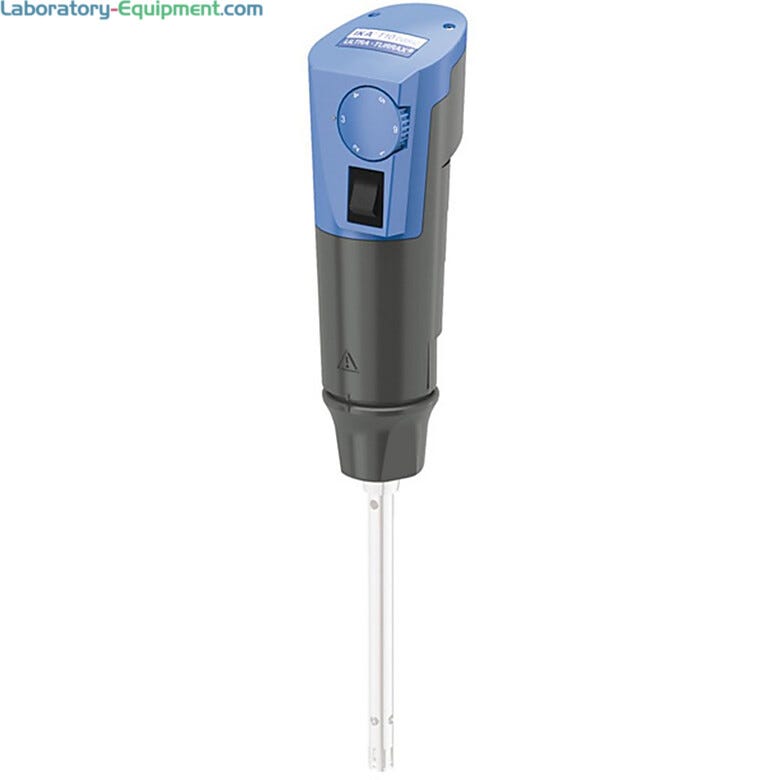

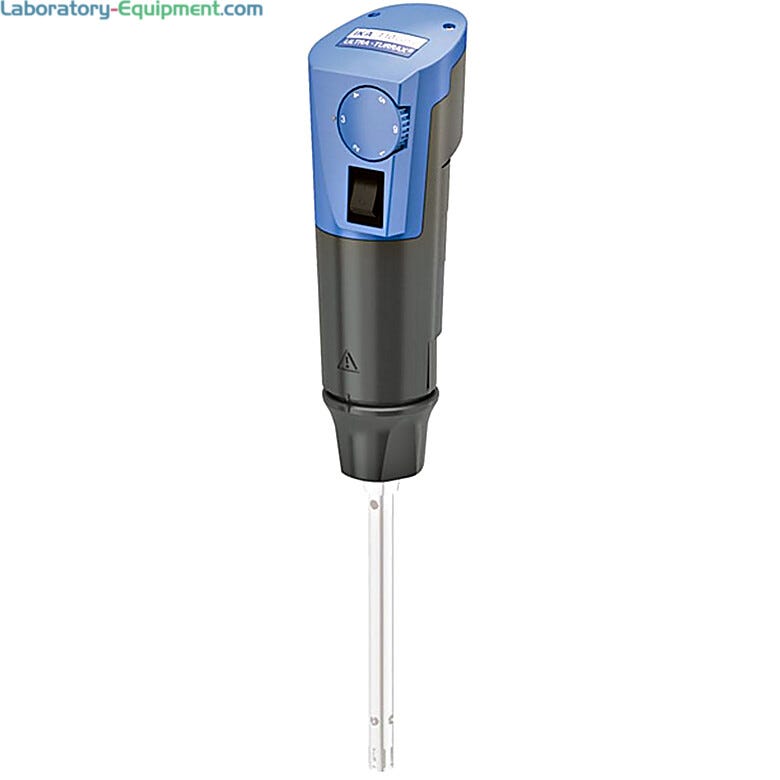

Disperser; T 10, Basic, ULTRA-TURRAX, IKA, 115 V
Product Details
  • Maximum Speed: 29900 rpm
  • Speed Range: 8,000 - 30,000 rpm
  • Motor rating output: 75 W
  • Extension arm diameter and lenght: 8 mm/100 mm
  • Optional Dispersing Element sold separately
  • Volume range min/max.: 0.5 to 100 ml (H2O)
  • Speed display: Scale
  • Noise without element: 65 dB(A)
  • Permitted on time ON: 10 minutes
  • Power OFF time after on: 5 minutes
  • Permissible ambient temperature: 5°C to 40°C
  • Permissible relative humidity: 80%
  • Mixes and disperses products with a wide range of miscibility
  • High performance drive for speed stability
  • Small scape dispersing system ideal for analytical research
  • Ergonomic, lightweight unit ideal for manual operation
  • Use as hand-held or standalone operation
  • Protection class according to DIN EN 60529: IP 30

Type: Batch

Maximum Processing Volume: 100 mL

Maximum Speed: 29900 rpm

Speed Range: Stepless

Controls: Basic

Model: T 10

Brand: ULTRA-TURRAX

Maximum Viscosity: 5000 mPas

Manufacturer SKU: 3737001

Unit of Measure: EA

Electrical Specifications: 115 V, 1.1 A, 125 W, 50/60 Hz

Weight, Product: 1.1 Lbs

Dimensions, Product: 2.2"W x 2.59"D x 7.01"H

Weight, Shipping: 10 lb

Dimensions, Shipping: 5" W x 5" D x 10" H

Package Type: Box

Buy Accessories
  1. Achieves the desired sample consistency from coarse to fine sample reductions.  |  6924-72 displayed
    Element; Dispersing, S 10 N-5 G, Stainless steel Ships Free Free shipping in contiguous USA In stock
    $2,989
    Increase Down Increase Up
  2. Achieves the desired sample consistency from coarse to fine sample reductions.  |  6924-73 displayed
    Element; Dispersing, S 10 N-8 G, Stainless steel Ships Free Free shipping in contiguous USA In stock
    $2,778
    Increase Down Increase Up
  3. Achieves the desired sample consistency from coarse to fine sample reductions.  |  6924-74 displayed
    Element; Dispersing, S 10 N-10 G, Stainless Steel Ships Free Free shipping in contiguous USA In stock
    $2,778
    Increase Down Increase Up
  4. Saw tooth design creates a cutting and tearing action for shredding fibrous materials  |  6924-75 displayed
    Element; Dispersing, S 10 N 8 G ST, Saw tooth Ships Free Free shipping in contiguous USA In stock
    $2,969
    Increase Down Increase Up
  5. Saw tooth design creates a cutting and tearing action for shredding fibrous materials  |  6924-76 displayed
    Element; Dispersing, S 10 N 10 G ST, Saw tooth Ships Free Free shipping in contiguous USA In stock
    $2,969
    Increase Down Increase Up
  6. Ideal for DNA applications and contamination free PCR analysis  |  6924-77 displayed
    Element; Dispersing, S 10 D-7 G-KS-65, Plastic, 24 pcs Ships Free Free shipping in contiguous USA In stock
    $1,256
    Increase Down Increase Up
  7. Ideal for DNA applications and contamination free PCR analysis  |  6924-78 displayed
    Element; Dispersing, S 10 D-7 G-KS-110, Plastic, 24pcs Ships Free Free shipping in contiguous USA In stock
    $1,472
    Increase Down Increase Up
  8. Plate Stand, R 1825, 560 mm height
    Plate Stand, R 1825, 560 mm height Ships Free Free shipping in contiguous USA In stock
    $354
    Increase Down Increase Up
  9. Plate Stand, R 1826, 800 mm height
    Plate Stand, R 1826, 800 mm height Ships Free Free shipping in contiguous USA In stock
    $399
    Increase Down Increase Up
  10.  |  6924-86 displayed
    Plate Stand, R 1827, 1000 mm height Ships Free Free shipping in contiguous USA In stock
    $414
    Increase Down Increase Up

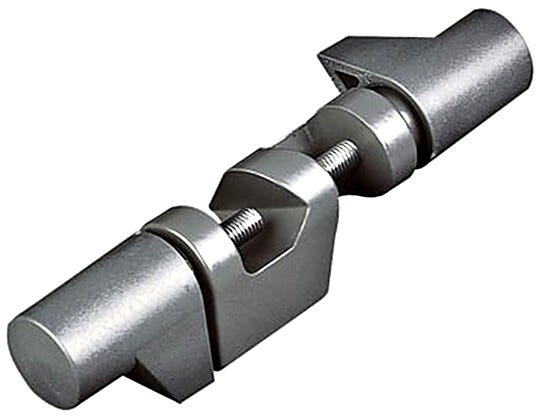

  11. For affixing dispersion unit to plate stand  |  6924-87 displayed
    R 182 Boss head clamp Ships Free Free shipping in contiguous USA In stock
    $75
    Increase Down Increase Up

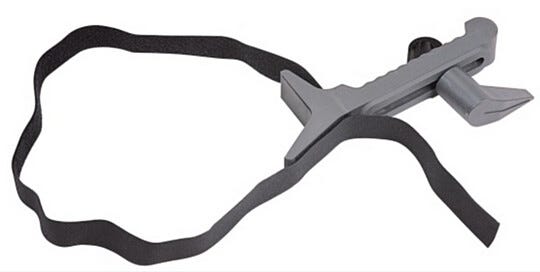

  12. Secures vessel against wall during dispersion  |  6924-88 displayed
    RH 3 Strap Clamp Ships Free Free shipping in contiguous USA In stock
    $124
    Increase Down Increase Up
  13. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

IKA T 10 basic ULTRA-TURRAX

Specifications for T 10 basic ULTRA-TURRAX® Dispension Unit

  • Motor rating input/output: 125W/75W
  • Volume range min/max: 0.5 to 100 ml (H2O)
  • Viscosity maximum: 5000 mPAS
  • Speed range: Stepless
  • Speed control: Stepless
  • Speed variation on load change: <6%
  • Noise without element: 65 dB(A)
  • Extension arm diameter: 8 mm
  • Extension arm length: 100 mm
  • Process type: batch
  • Permitted ON time: 10 minutes
  • Power OFF time after on: 5 minutes
  • Overload/blocking protection: Locking bimetallic switch; temperature and power sensitivity
  • Dimensions: (W x D x H) 2.20 x 7.01 x 2.59 in. (56 x 178 x 66 mm)
  • Clamp arm dimension: (Ø x L) 0.315 x 3.94 in. (8 x 100 mm)
  • Weight: 1.10 lbs. [0.5 kg]
  • Permissible ambient temperature: 5°C to 40°C
  • Permissible relative humidity: 80%
  • Protection class per DIN EN 60529: IP 30
  • Contamination level: 2
  • Protection class: II
  • Overvoltage category: II
  • Operation at a terrestrial altitude Maximum 2000 m above sea level
  • Voltage: 115V; 230V also available; contact us for details
  • Frequency: 50/60 Hz
  • Power input/output: 125W/75W
Adjusting wheel scale 1 2 3 4 5 6
No-load speed [RPM] 8,000 9,500 11,500 14,500 20,500 30,000
Speed in 5 ml water [RPM] 7,500 9,400 11,400 14,400 20,400 29,900
Speed Control Table for T 10 Dispersion Unit
Calculations in speed table based on a dispersion of 5 ml water using dispersing tool S 10 N-5G. Speeds will vary depending on dispersing tool used. Speed is dependent on the dispersion element used, viscosity of the medium, and its volume
